Introduction
It is important for wastewater treatment plants to measure Biochemical Oxygen Demand (BOD) to quantify the potential for effluent water to deplete the oxygen in the receiving stream. If not controlled, discharged wastewater can rob the receiving stream of this oxygen and have significant negative effects on the environment. Measuring BOD is required as part of the environmental discharge permit and is an important parameter to evaluate the effectiveness of the wastewater treatment operation.

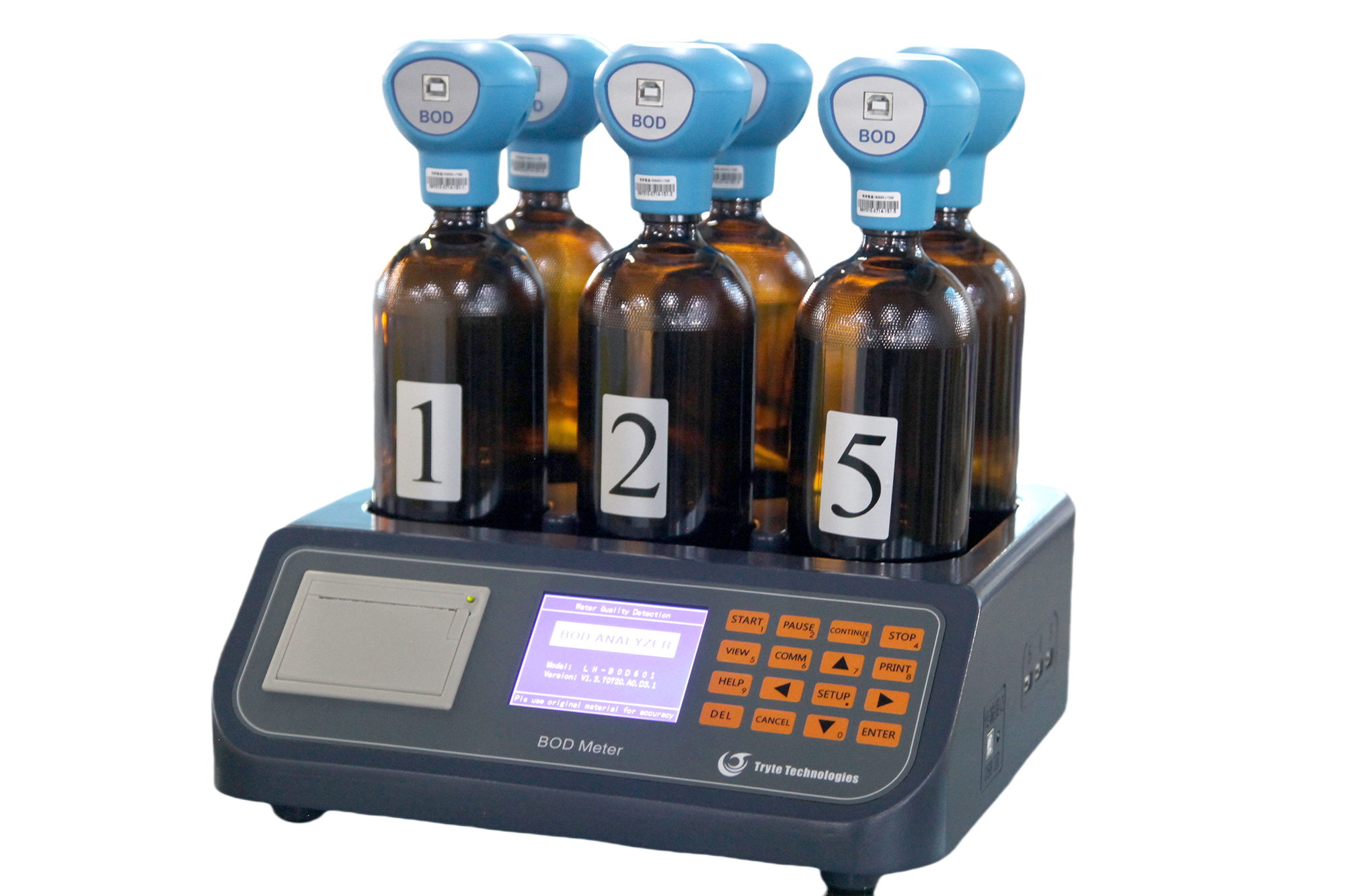

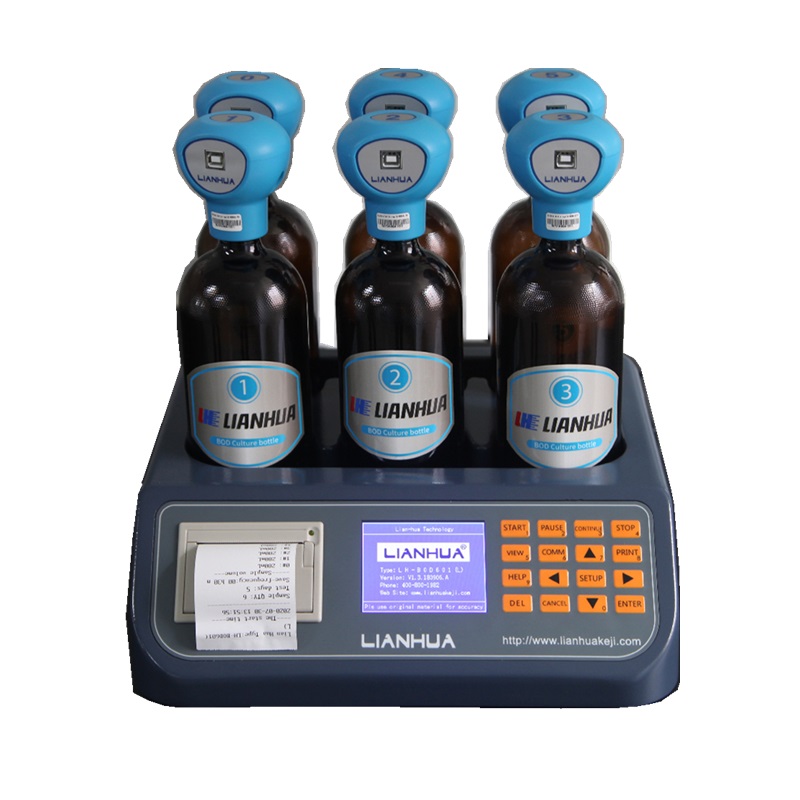

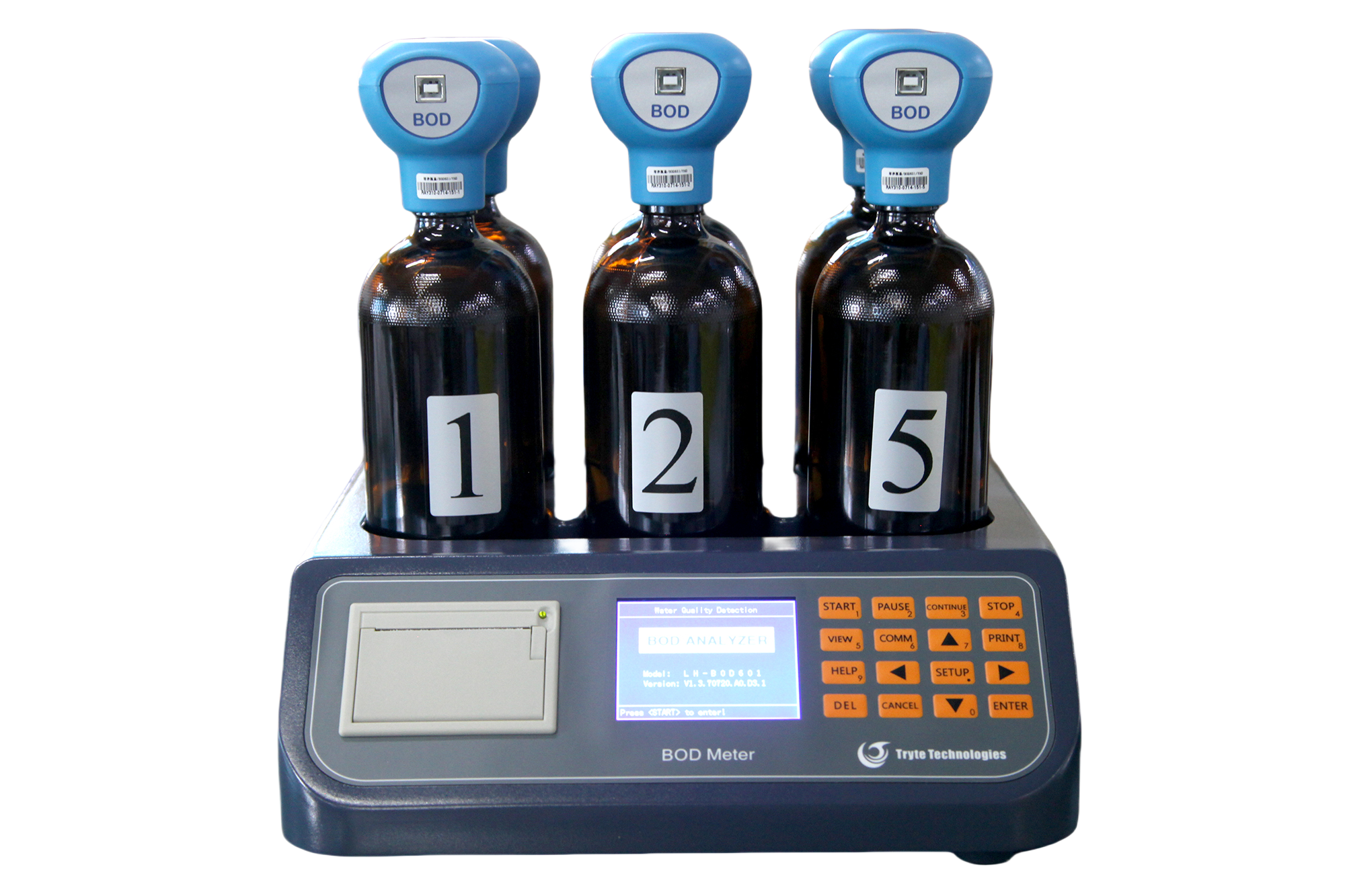

LH-BOD601L BOD instrument with BOD reagent for Biochemical Oxygen Demand testing help wastewater treatment plants achieve optimum BOD measurement while allowing keeping a high level of operational efficiency. It is used manometric method, and supports 1-7 days testing period.
Features
(01) At the same time can be measured in a sample of 6;
(02) Automatic daily print data;
(03) Color liquid crystal display screen, the sample values with different colors, intuitive and clear;
(04) Has a plurality of stirring mode (batch, continuous), prolong the service life of the instrument;
(05) The culture period can be adjusted according to the demand, can choose 1-7 days;
(06) To view the test process and the test data easily.
(07) Support to transfer data to computer through software.
Specifications
|
Instrument name |
Biochemical Oxygen Demand (BOD5) Instrument |
|
Instrument model |
LH-BOD601L |
|
Measurement range |
0-4000mg/L |
|
Measuring error |
±5% |
|
Cycle length |
1-7 days |
|
Data recording frequency |
6 minutes-3 hours/ time |
|
Measure amount |
6 |
|

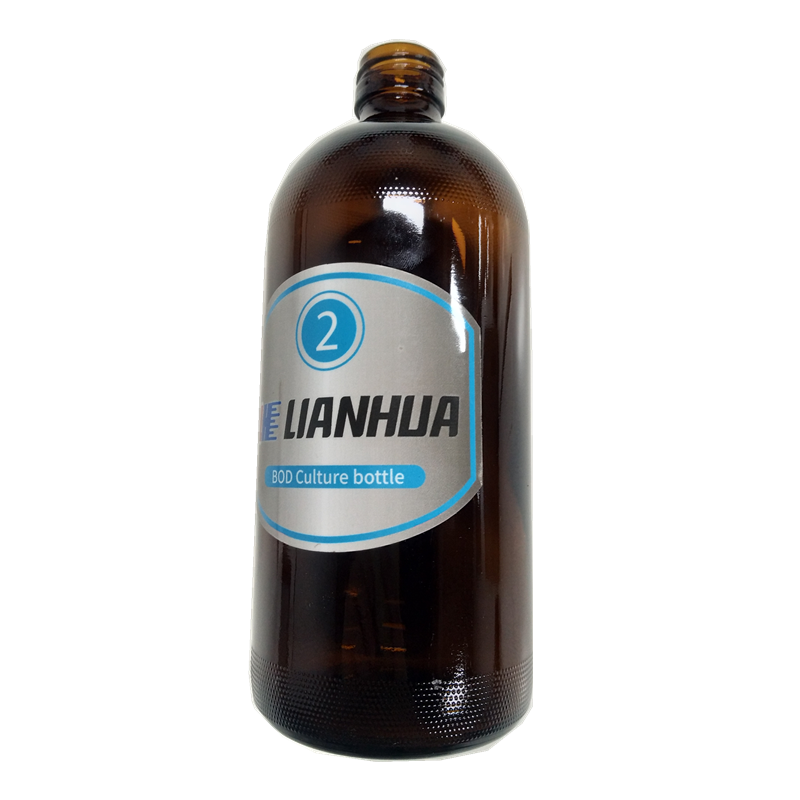

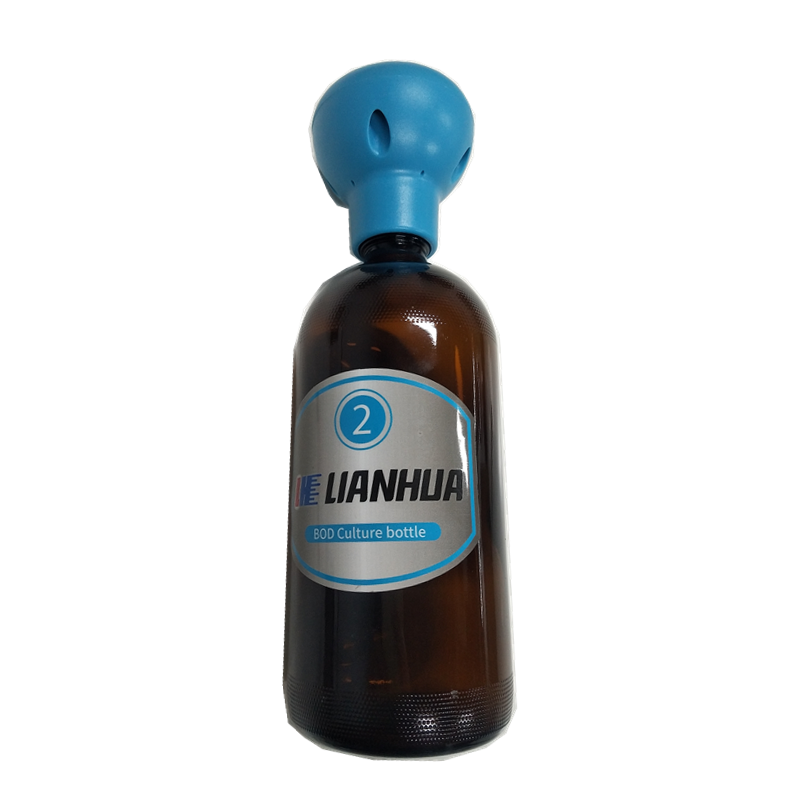

Culture bottle volume |
580ml |
|
Data storage |
5 years |
|
Communication |
USB transmission, infrared transmission (optional) |
|
Culture temperature |
20±1 |
|
Working power |
110-230V 50-60HZ |
|
Rated power |
24W |
