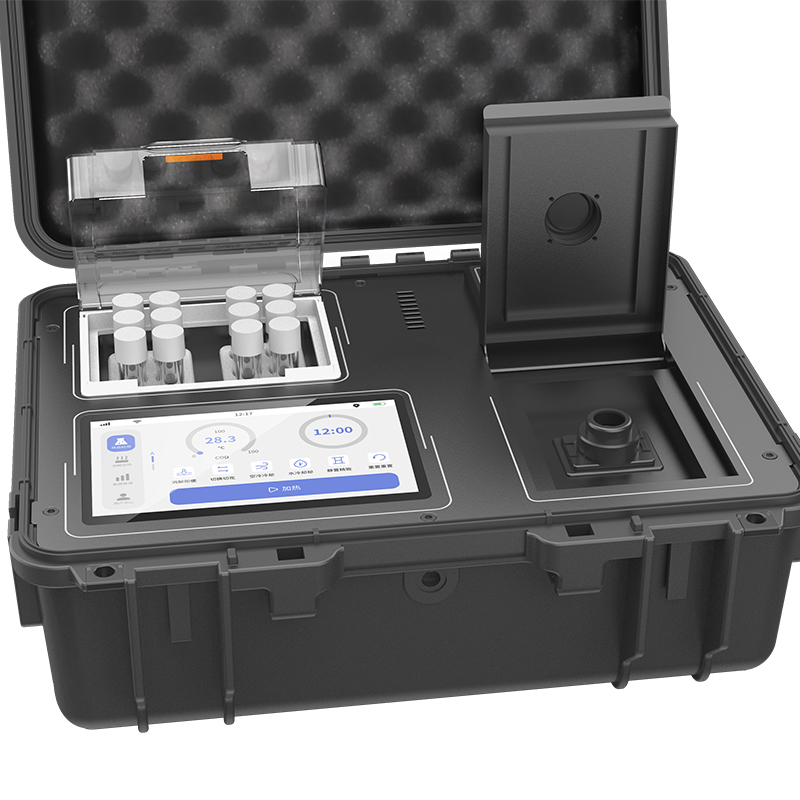

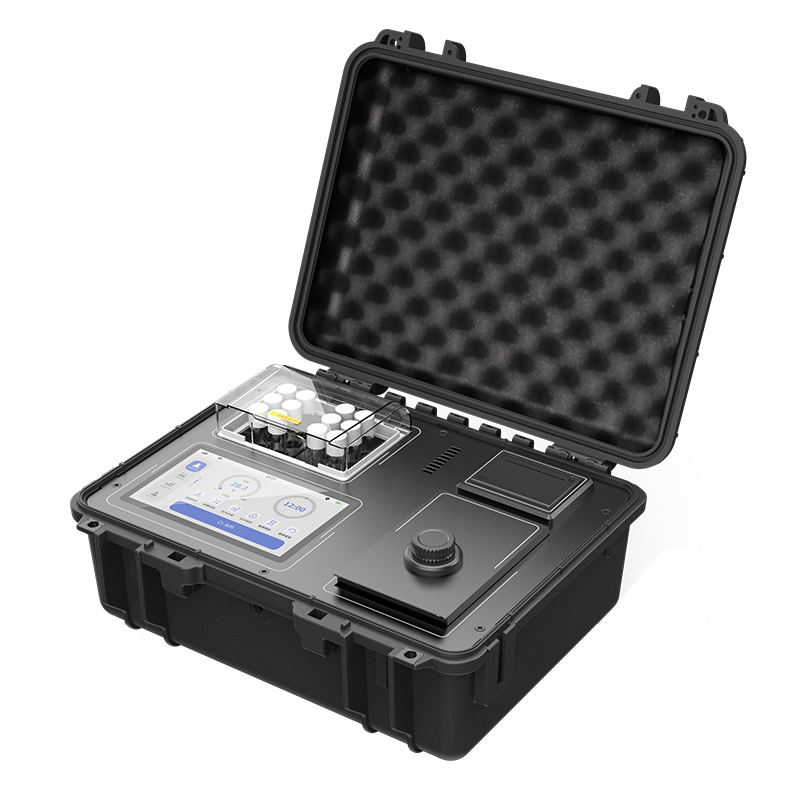

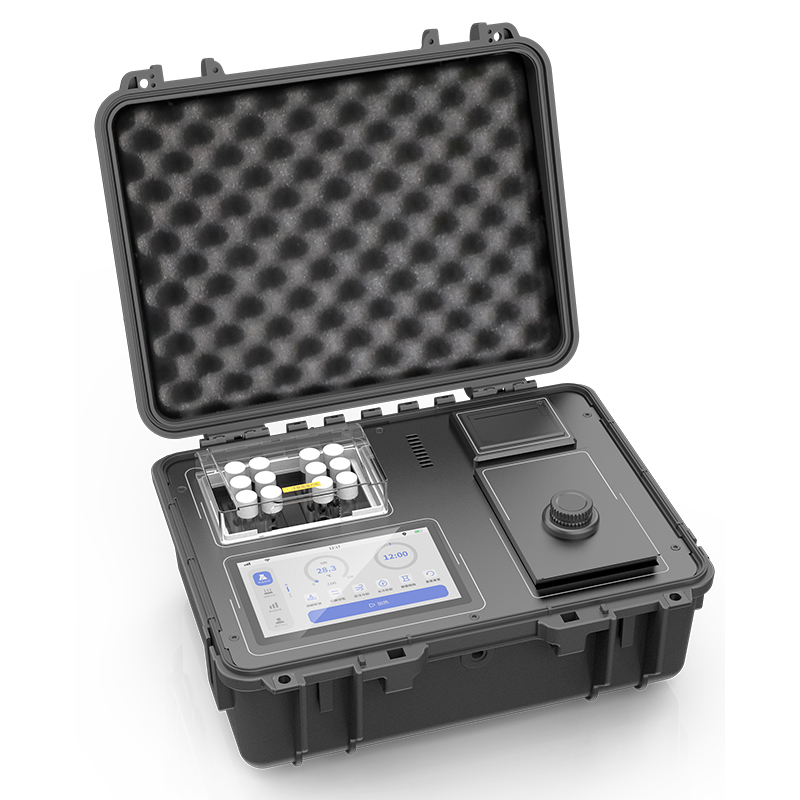

Portable multi-parameter water quality Instruments LH-C600
Lianhua LH-C600 is a water quality instrument for outdoor detection of users. It uses a spectrophotometry method and built -in lithium batteries. It is an instrument that integrates colorimeter and reactor. 7 inch touch screen, built-in printer.
- Overview
- Specification
- Inquiry
- Related Products
Features
1) More than 38 items: direct analysis of chemical oxygen demand (COD), ammonia nitrogen, total phosphorus, total nitrogen, suspended solids, color, turbidity, heavy metals, organic pollutants and inorganic pollutants, etc. direct reading;
2) 360° rotating colorimetry: support 25mm, 16mm colorimetric tube rotation colorimetric, support 10-30mm cuvette colorimetric;
3) Built-in curves: 600 curves, including 480 standard curves and 120 regression curves, which can be called as needed;
4) Calibration function: multi-point calibration, support for making standard curves; automatically save calibration records, which can be called directly;
5) Recent mode: Intelligent memory of the 8 most frequently used measurement modes recently, no need to manually add selection;
6) Dual temperature zone design: 6+6 dual temperature zone design, 165°C and 60°C are simultaneously operated without interfering with each other, and independent work and colorimetry do not interfere with each other;
7) Permissions management: built-in administrators can set user permissions by themselves to facilitate management and ensure data security;
8) Portable in the field: Portable design, built-in lithium battery, with a professional accessory box, to achieve field measurement without power supply.
Specification
|
Name |
Portable multi - parameter water quality analyzer |
|||||
|
Model |
LH-C600 |
|||||
|
Item |
COD |
Ammonia nitrogen |
Total phosphorus |
Total nitrogen |
SS |
Turbidity |
|
Range |
0-15000mg/L (subsection) |
0－160mg/L |
0－100mg/L |
0－150mg/L |
0.5-1000 mg/L |
0.5-400NTU |
|
Measurement accuracy |
COD<50mg/L,≤±10％ |
≤±5％ |
≤±5% |
≤±5% |
≤±5% |
≤±5％ |
|
COD>50mg/L,≤± 5％ |
||||||
|
COD>50mg/L,≤± 5％ |
||||||
|
Limits of detection |
0.1mg/L |
0.01mg/L |
0.002mg/L |
0.1mg/L |
1mg/L |
0.5NTU |
|
Determination time |
20min |
10~15min |
35~50min |
45-50min |
1min |
1min |
|
Batch processing |
12 |
no limit |
12 |
12 |
no limit |
no limit |
|
Repeatability |
≤±5% |
≤±5% |
≤±5% |
≤±5% |
≤±5% |
≤±5% |
|
Lamp life |
100000 hours |
|||||
|
Optical stability |
≤±0.001A/10min |
|||||
|
Anti chlorine interference |
[Cl-]＜1000mg/Lhas no effect |
— |
— |
— |
— |
— |
|
|
[Cl-]＜4000mg/L(optional) |
|||||
|
Colorimetric method |
16mm/25mm Tube,10mm/30mm Cuvette |
|||||
|
Data storage |
50 million |
|||||
|
Curve data |
600 |
|||||
|
Display mode |
7-inch 1024×600 touch screen |
|||||
|
Communication interface |
USB |
|||||
|
Digestion temperature |
165℃±0.5℃ |
— |
120℃±0.5℃ |
122℃±0.5℃ |
— |
— |
|
Digestion time |
10min |
— |
30min |
40min |
— |
— |
|
Time switch |
Automatic |
|||||
|
Power supply |
Power adapter/high energy battery / 220V ac power/car power supply |
|||||
|
Reactor temperature range |
RT ±5-190℃ |
|||||
|
Reactor Heating up time |
Up to 165 degree in 10 minutes |
|||||
|
Temperature indication error |
＜±2℃ |
|||||
|
Uniformity of temperature field |
≤2℃ |
|||||
|
Timing range |
1-600 min |
|||||
|
Timing accuracy |
0.2 s/hour |
|||||
|
Display screen |
7-inch 1024×600 touch screen |
|||||
|
Printer |
Thermal Line Printer |
|||||
|
Weight |
Host:11.9Kg; Test box:7Kg |
|||||
|
Size |
Host:（430×345×188）mm;Experiment box:（479×387×155）mm |
|||||
|
Ambient temperature and humidity |
（5-40）℃,≤85%(no condensation) |
|||||
|
Rated voltage |
24V |
|||||
|
Power consumption |
180W |
|||||
|
Measurement items(Others is 9-40) |
||
|
Item name |
Analysis method |
Range (mg/L) |
|
COD |
Rapid digestion spectrophotometry |
0-15000 |
|
Permanganate index |
Potassium permanganate oxidation spectrophotometry |
0.3-5 |
|
Ammonia Nitrogen - Nessler |
Nessler's reagent spectrophotometry |
0-160（segmented） |
|
Ammonia nitrogen-salicylic acid |
Salicylic acid spectrophotometry |
0.02-50 |
|
Total Phosphorus-Ammonium Molybdate |
Ammonium molybdate spectrophotometry |
0-12（segmented） |
|
Total phosphorus-vanadium molybdenum yellow |
Vanadium molybdenum yellow spectrophotometry |
2-100 |
|
Total nitrogen |
Chromotropic Acid Spectrophotometry |
0-150 |
|
Turbidity |
Formazine spectrophotometry |
0-400NTU |
|
Chroma |
Platinum cobalt color |
0-500Hazen |
|
Suspended solids |
Direct colorimetry |
0-1000 |
|
Copper |
BCA photometry |
0.02-50 |
|
Iron |
o-phenanthroline spectrophotometry |
0.01-50 |
|
Nickel |
Diacetyl oxime spectrophotometry |
0.1-40 |
|
Hexavalent chromium |
Diphenylcarbazide spectrophotometry |
0.01-10 |
|
Total chromium |
Diphenylcarbazide spectrophotometry |
0.01-10 |
|
Lead |
Xylenol Orange Spectrophotometry |
0.05-50 |
|
Zinc |
Zinc reagent spectrophotometry |
0.1-10 |
|
Cadmium |
Dithizone spectrophotometry |
0.1-5 |
|
Manganese |
Potassium periodate spectrophotometry |
0.01-50 |
|
Silver |
Cadmium Reagent 2B Spectrophotometry |
0.01-8 |
|
Antimony |
5-Br-PADAP spectrophotometry |
0.05-12 |
|
Cobalt |
5-Chloro-2-(pyridylazo)-1,3-diaminobenzene spectrophotometry |
0.05-20 |
|
Nitrate nitrogen |
Chromotropic Acid Spectrophotometry |
0.05-250 |
|
Nitrite nitrogen |
Naphthylethylenediamine hydrochloride spectrophotometry |
0.01-6 |
|
Sulfide |
Methylene blue spectrophotometry |
0.02-20 |
|
Sulfate |
Barium chromate spectrophotometry |
5-2500 |
|
Phosphate |
Ammonium molybdate spectrophotometry |
0-25 |
|
Fluoride |
Fluorine Reagent Spectrophotometry |
0.01-12 |
|
Cyanide |
Barbituric acid spectrophotometry |
0.004-5 |
|
Free chlorine |
N,N-diethyl-1.4phenylenediamine spectrophotometry |
0.1-15 |
|
Total chlorine |
N,N-diethyl-1.4phenylenediamine spectrophotometry |
0.1-15 |
|
Carbon dioxide |
DPD spectrophotometry |
0.1-50 |
|
Ozone |
Indigo spectrophotometry |
0.01-1.25 |
|
Silica |
Silicon molybdenum blue spectrophotometry |
0.05-40 |
|
Formaldehyde |
Acetylacetone spectrophotometry |
0.05-50 |
|
Aniline |
Naphthylethylenediamine azo hydrochloride spectrophotometry |
0.03-20 |
|
Nitrobenzene |
Determination of total nitro compounds by spectrophotometric method |
0.05-25 |
|
Volatile phenol |
4-Aminoantipyrine spectrophotometry |
0.01-25 |
|
Anionic surfactant |
Methylene blue spectrophotometry |
0.05-20 |
|
Trimethylhydrazine |
Sodium ferrocyanide spectrophotometry |
0.1-20 |
