UV Visible Intelligent Multi Parameter Water Quality Tester LH-3BA(V12)
The testing items are based on national industry standards, including COD - "HJ/T 399-2007", ammonia nitrogen - "HJ 535-2009", total phosphorus - "GB11893-89", and total nitrogen - "HJ 636-2012";
The performance of the photometer meets the Level 2 requirements of the JJG-178 Verification Regulations for Ultraviolet, Visible, and Near Infrared Spectrophotometers.
- Overview
- Specifications
- Inquiry
- Related Products
Features
1) Verification regulation: Complies with the Level 2 requirements of the JJG-178 Verification Regulation for Ultraviolet, Visible, and Near Infrared Spectrophotometers;
2) Equipped with a multifunctional single colorimetric cell, compatible with 10mm, 20mm, 30mm colorimetric dishes and φ 16mm tube colorimetric. The upgraded limit function of the single colorimetric cell greatly improves the consistency and accuracy of sample measurement;

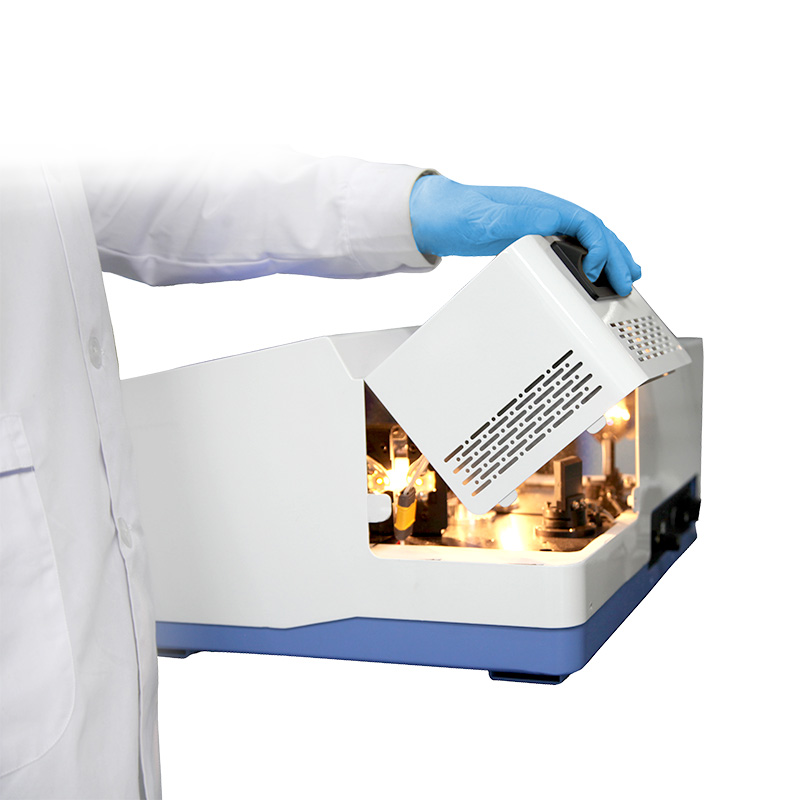

3) Easy maintenance: Unique socket type tungsten/deuterium lamp, light replacement without optical debugging, equipment maintenance is more convenient;
4) Professional total nitrogen determination: can be used as a professional total nitrogen analyzer, with automatic switching between UV dual wavelengths, simple and easy to use, flexible and efficient, good wavelength repeatability, precise results, and direct concentration reading;
5) Preset curves: 74 measurement modes and 360 curves are preset, including 277 standard curves and 83 fitted curves;
6) Supporting reagents: well-equipped professional consumables and reagents, greatly reducing work steps and making measurements simpler and more accurate;
7) Accurate measurement: Using imported high-quality holographic gratings to further reduce instrument stray light, making instrument analysis more accurate;

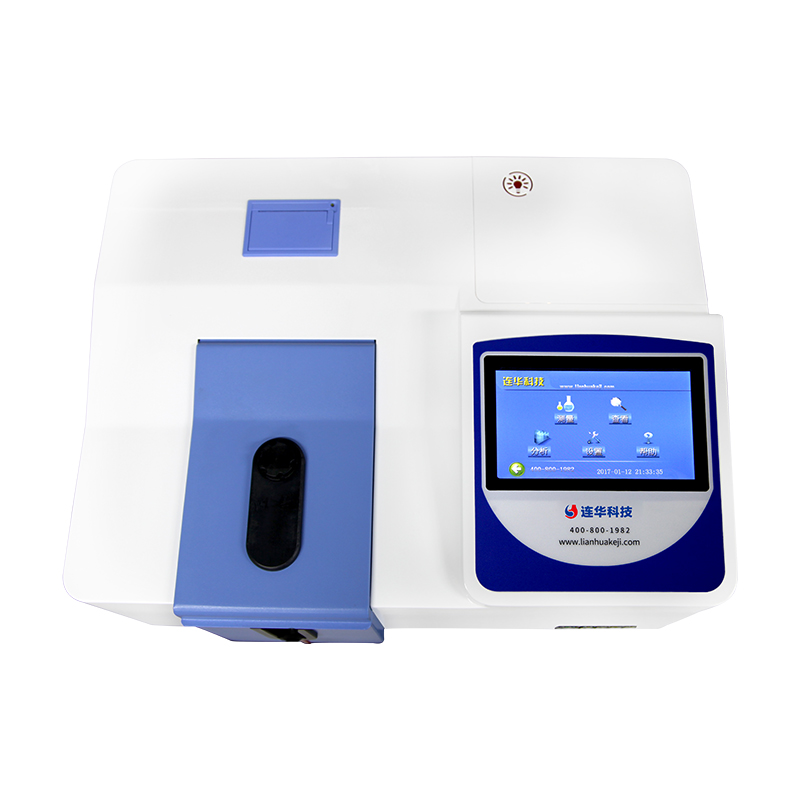

8) Easy to operate: 7-inch color touch screen, user-friendly design, direct reading of concentration, English display interface;
9) Data processing: It can store 12000 sets of data and can be freely viewed. It supports instant printing and can be uploaded to a computer;
10) Supporting digestion instrument: Equipped with a 30 hole dual temperature zone multi parameter digestion instrument, it can simultaneously digest water samples with two different temperature indicators, saving time.
Specifications
|
Testing parameters |
|||
|
Instrument name |
UV Vis multi-parameter water quality tester |
Instrument model |
LH-3BA（V12） |
|
Wavelength Range |
（190~1100）nm |
Spectral bandwidth |
2.0nm |
|
Wavelength repeatability
|
≤±0.2nm（190-340nm） |
Wavelength accuracy
|
±0.5nm（190-340nm） |
|
≤±0.5nm（340-1100nm） |
±1.0nm（340-1100nm） |
||
|
Stray light |
≤0.2%（220nm、360nm） ≤0.5%（420nm） |
Transmittance accuracy |
±0.5% |
|
Transmission density repeatability |
≤0.2% |
Wavelength resolution |
0.1nm |
|
Baseline flatness |
≤±0.002A |
Instrument noise |
≤0.1%（Transmittance ratio 0%） |
|
Data storage |
12000 |
≤0.2%（Transmittance ratio 100%） |
|
|
Physical parameters |
|||
|
Display |
7-inch color touch screen |
|
Thermal line printer |
|
data transmission |
USB |
Instrument weight |
12.5Kg |
|
External dimensions |
（450×341×233）mm |
||
|
Environment and working parameters |
|||
|
Ambient temperature |
（5~40）℃ |
Ambient humidity |
Relative humidity ≤ 85% RH (without condensation) |
|
Rated voltage |
AC220V±10%/50Hz |
Rated power |
80W |
Measurement items
|
Testing items |
Analysis method |
Range(mg/L) |
Testing items |
Analysis method |
Range(mg/L) |
|
COD |
Rapid digestion spectrophotometry |
20~15000 |
Ammonia nitrogen 1 |
Nessler's reagent spectrophotometric method |
0.05~80 |
|
Ammonia nitrogen 2 |
Salicylic acid spectrophotometric method |
0.5~50 |
Total phosphorus |
Ammonium molybdate spectrophotometric method |
0~7.5 |
|
High range of total phosphorus |
Vanadium molybdenum yellow spectrophotometric method |
2~100 |
Total nitrogen |
UV spectrophotometer method |
0~80 |
|
Total nitrogen |
Color changing acid spectrophotometric method |
0~100 |
turbidity |
Fulmazhen spectrophotometric method |
0.5~400 |
|
Suspended solids |
Direct colorimetric method |
0~1000 |
Permanganate index |
Potassium permanganate oxidation spectrophotometric method |
0.3~20 |
|
Nitrate nitrogen |
Color changing acid spectrophotometric method |
0~100 |
Nitrite nitrogen |
Naphthalene ethylenediamine hydrochloride spectrophotometric method |
0~6 |
|
Residual chlorine and total chlorine |
DPD spectrophotometric method |
0~1.5 |
phosphate |
Ammonium molybdate spectrophotometric method |
0~25 |
|
sulfate |
Barium chromate spectrophotometric method |
3~1250 |
fluoride |
Fluorine reagent spectrophotometric method |
0~12 |
|
sulfide |
Methylene blue spectrophotometric method |
0~6 |
cyanide |
Isonicotinate barbituric acid spectrophotometric method |
0~0.45 |
|
iron |
Phenanthroline spectrophotometric method |
0~50 |
Total chromium/hexavalent chromium |
Diphenylcarbazide spectrophotometric method |
0~5 |
|
chroma |
Platinum cobalt color system |
0~2000Hazen |
zinc |
Zinc reagent spectrophotometric method |
0~20 |
|
copper |
BCA spectrophotometric method |
0~50 |
nickel |
Dimethylglyoxime spectrophotometric method |
0~40 |
|
lead |
Xylenol Orange spectrophotometric method |
0~5 |
cadmium |
Cadmium reagent spectrophotometric method |
0~5 |
|
manganese |
Potassium periodate oxidation spectrophotometric method |
0~50 |
silver |
Cadmium reagent 2B spectrophotometric method |
0~8 |
|
antimony |
5-Br-PADAP photometric method |
0~12 |
aniline |
Naphthalene ethylenediamine hydrochloride spectrophotometric method |
0~16 |
|
nitrobenzene |
Naphthalene ethylenediamine hydrochloride spectrophotometric method |
0~25 |
Volatile phenol |
4-aminoantipyrine spectrophotometric method |
0~25 |
|
formaldehyde |
Acetylacetone spectrophotometric method |
0~50 |
Trace arsenic |
New silver salt spectrophotometric method |
0~0.012 |
|
Total arsenic |
Ag (DOC) photometric method |
0~5 |
mercury |
Dithiazone photometric method |
0-2 |
|
Anionic surfactant |
Methylene blue spectrophotometric method |
0~2 |
boron |
Curcumin photometric method |
0~20 |
|
Iodide |
Catalytic colorimetric method |
≥0.01 |
Hydrazine hydrate |
Methyl aminobenzaldehyde spectrophotometric method |
0-10 |
|
carbon disulfide |
Diethylamine copper acetate spectrophotometric method |
0-15 |
Triethylamine |
Bromophenol blue spectrophotometric method |
0-0.4 |
|
Thiocyanate salt |
Isonicotinate pyrazolone spectrophotometric method |
0-15 |
beryllium |
Chromium Tianqing S spectrophotometric method |
0-40 |
|
Trichloroacetaldehyde |
Pyrazolone spectrophotometric method |
0-20 |
vanadium |
Tantalum reagent (BPHA) extraction spectrophotometric method |
0-100 |
|
barium |
Chromate indirect spectrophotometric method |
0-30 |
uranium |
TROP-5-Br-PADAp photometric method |
0-16 |
|
thorium |
Uranium reagent III photometric method |
0-30 |
cobalt |
5-Chloro-2- (Pyridylazo) -1,3-Diaminobenzene spectrophotometric method |
0-1.6 |
.
